• SMB-8820E Series Multi-Channel H.264 /H.265 HD Encoder features high performance, ultra-low latency and low bit rates for DTV systems, and adopts state-of-the-art compression technology (H.264/AVC-H.265/HEVC) to achieve compression efficiency of the former MPEG-2 standard by over two times, as well as excellent resolution. Also audio encoding supports MPEG-1 Layer2.

• The device provides input interfaces of 4/8/12/16/20/24 channels, and ASI output and 4/8/12/16/20 /24*SPTS/4*MPTS TSoIP(UDP/IP) output after loss-less compression processing. The unique empty packets filtering capability enables the spectrum source to be saved for IPTV systems.

• SMB-8820E has an external 2*ASI input, which can be multiplexed with local multi-programs to eliminate the needs of multiplexers, and also simplify the network architecture for high reliability solutions. SMB-8820E Encoder is the preferred device for content source encoding of DTV broadcasting system to address the ever-increasing demand for more premium viewing experien

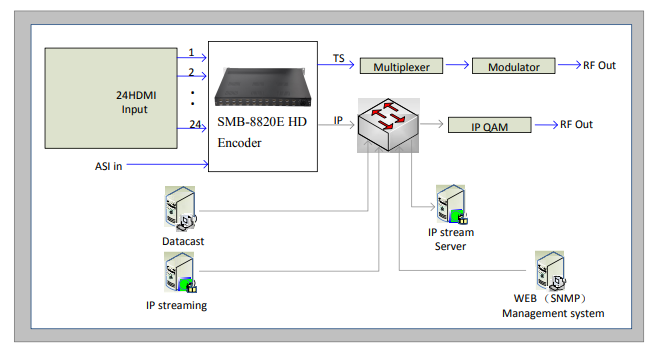

Application:

• Various of DTV/IPTV/CATV Broadcasting Systems 3 / 5 SMB-8820E Series Multi-Channel HD Encoder

• Distribute IP source to Streaming Server in IPTV System

• Advertising, monitoring, training and educating

• Enterprise, hotel, campus, hospital, restaurant, public place etc.







Video Specifications

• Video compression: H.264/AVC, H.265 /HEVC(Option)

• Video inputs: Version 1: 4/8/12/16/20/24* (SMB-8820E)

• The Input Resolution: 1920x1080@60P, 1920x1080@60i, 1920x1080@50P, 1920x1080@50i, 1280x720@60P, 1280x720@50P 720x576@50i, 720x480@60i

• The Output Resolution: 1920×1080@30P, 1920×1080@25P, 1280×720@30P, 1280×720@25P, 720×576@25P, 720×480@30P, (output without 60P output)

• Encoding: MPEG-4 AVC/H.264, H.265 /HEVC(Option)

• Bit-rate : 1Mbps~13Mbps

• Rate Control : CBR, VBR

• GOP Structure : IPPPP (P Frame adjustment, without B Frame )
