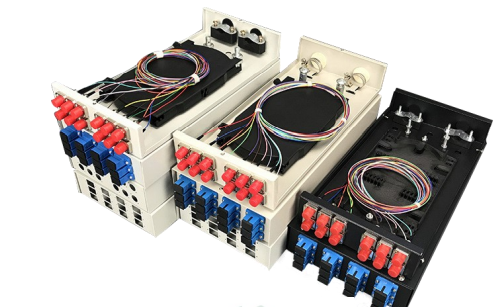

Description Fiber termination box (FTB), known as optical termination box (OTB) as well, is a compact fiber management product of small size. It is widely adopted in FTTx cabling for both fiber cabling and cable management. In some circumstances, fiber termination box can be regarded as the mini size of fiber optic patch panel and optical distribution frame (ODF).

Fiber termination box contains the shell, the internals (supporting frame, set fiber disc, fixing device) and optical fiber joint protective element. Prominent advantages of fiber termination box lie in efficient cable-fixing, welding and its protective role in machinery of the optical fiber.

We mainly offer wall mount fiber termination boxes are designed for either pre-connectorized cables, field installation of connectors, or field splicing of pigtails.

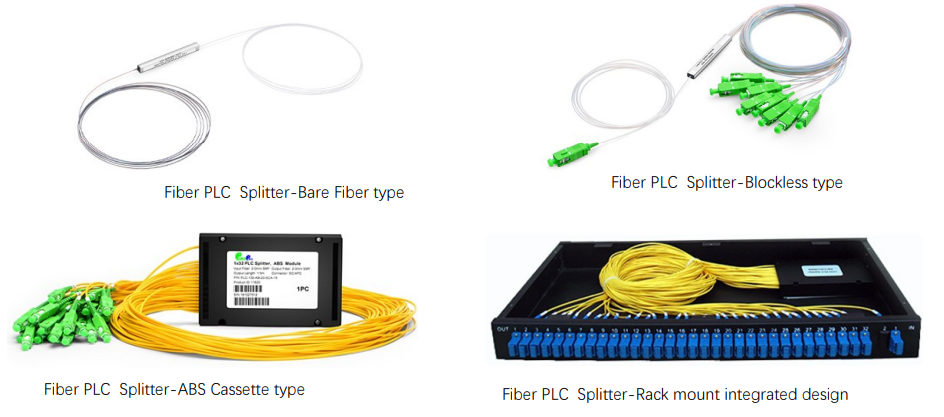

Fiber PLC Splitter Description Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

Our PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.

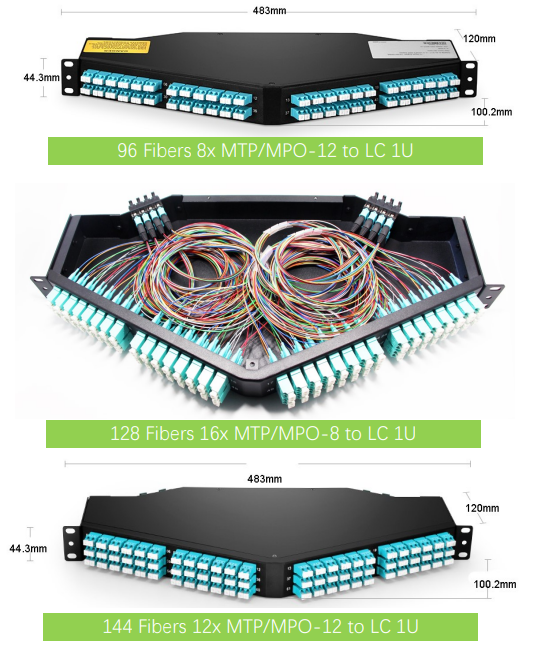

FHD 1U MPO/MTP-LC Angled Rack mount patch panel-No Cassette modular design
