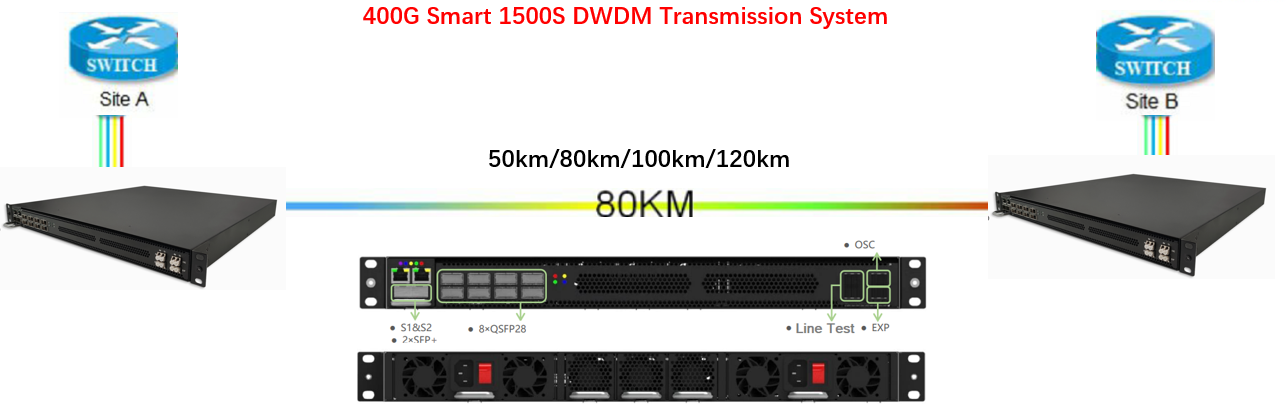

Smart 1500S Type DWDM System is an integrated WDM transmission platform, which meets the application scenarios of 8*100G service 0~120KM point-to-point transmission without middle repeater stations, adopts PAM4 DWDM transmission technology, supports automatic adjustment of line side dispersion, OLP protection, out-of-band OSC management and stack expansion; the appearance conforms to the network switch form, suitable for customers in the data industry, reducing the difficulty of system fiber connection, and facilitating service opening and daily maintenance.

u505×445×44.5mm (W×D×H) (including mounting ears)

uThe depth of the fuselage is 435mm; the auxiliary pull ring of the front card slot is 50mm;

uRear card slot auxiliary pull ring 20mm

uSupport Web/SNMP/CLI management;

uEthernet communication interface

uS1&S2: OSC I/O management interface

uSupport 2×100Mbps SFP+ transceiver

uSupport 8×QSFP28 100G SR4/LR4/ZR4

uFor single fiber transmission, LC/UPC connector
